This classic mechanical balance is the standard by which all others are measured! Accurate and dependable, the original OHAUS Triple Beam balance has been the standard in science class-rooms for decades. Whether you're weighing solids, liquids, powders or even animals, an OHAUS Triple Beam balance is well equipped to handle the job. Teacher will display the triple beam balance diagram for the students on the SMART Board (or large poster-sized diagram). Students will recall that the triple beam balance is used to determine an object's mass. Teacher will show the labeled diagram of the balance and explain each part's function.

Base and Support Rod (ME-9355) Triple Beam Balance (SE-8723) Paper clips (for masses <1 g) Calipers ... and Free Body Diagram disk string support rod Mass Hangar and mass. Rotary Motion Sensor Model No. CI-6538 24 straight down the middle of the groove on the clamp-on Super Pulley. (see

Triple beam balance diagram

A triple beam balance is a type of lever that is used to measure mass, or the amount of matter in an object. An object with an unknown mass is placed on the measurement tray. On the other side of a fulcrum, a set of sliding weights, called riders, slide on beams to balance the object. Practice using the balance in the Triple Beam Balance Gizmo. 1. 2) Naming the parts - A triple beam balance scale is made up of a several parts. The stage, often called the pan, is the round stainless steel disk that would hold the object you wish to weigh. The base is the metal structure that supports the triple beam balance scale. The beams are the three measurement scales used for determining weight. necessary to use the triple beam balance to find this. Mark each hanger/hook with L or R to indicate whether it is on the left or the right. Part Two 4. Place the knife-edge about 20-30 cm from the end of the meter stick and place a single weight hanger and weight hook on the short end of the stick. Place slot masses on this

Triple beam balance diagram. Use the triple-beam balance to determine the mass of the washers, and record the corresponding weight (in Newtons) ... In this scenario, draw detailed diagrams showing the (1) the path of the rubber ball as it travels in a circle, before the string breaks, and (2) on the same diagram, indicate the position where the string breaks and the ... Triple beam balance A balance comprised of three beams used to determine the mass of an object Riders The part that moves along the beam to mark how much the item weights Pointer Pointy part of the scale that moves back and forth until it is in balance Pan Circles that hold the items to be measured Beams The parts that holds the weighted riders. A trip l e beam balance is a type of lever that is used to measure mass, or the amount of matter in an object. An object with an unknown mass is placed on the measurement tray. On the other side of... Neuroimaging is the use of quantitative (computational) techniques to study the structure and function of the central nervous system, developed as an objective way of scientifically studying the healthy human brain in a non-invasive manner (e.g. SPM FSL AFNI).Increasingly it is also being used for quantitative studies of brain disease and psychiatric illness.

Step 2 - Place one hand on the base and the other hand on the BEAMS. Hold the triple beam balance close to your body. How do you measure mass using a TBB? a. Empty the weigh pan. b. Move all the weights/riders to zero. d. Place the object on the weigh pan. A poster containing a diagram with labels showing the key parts of a triple beam balance scale. In Science it is important that students know how to use a variety of tools when conducting scientific experiments and inquiry . Student Exploration: Triple Beam Balance Vocabulary: fulcrum, lever, mass, rider, triple beam balance Prior Knowledge Questions (Do these BEFORE using the Gizmo.) 1. A lever is a long beam that is set on a pointed fulcrum. A heavy rock is placed on a lever, as shown. Draw an arrow where you should push down to lift the rock most easily. 2. We guarantee a perfect price-quality balance to all students. The more pages you order, the less you pay. We can also offer you a custom pricing if you feel that our pricing doesn't really feel meet your needs. Proceed To Order. Writing. Fine-crafting custom academic essays for each individual’s success - on time.

Title: My Weigh Triple Beam Balance Author: My Weigh Subject: My Weigh Triple Beam Balance Keywords: My Weigh Triple Beam Balance Created Date: 1/24/2020 10:36:02 AM Question: How is a triple beam balance used to find mass? 1. Observe: The riders have masses of 10 grams (top), 100 grams (middle), and 1 gram (bottom). Drag the 100-gram rider to 300. At this position it balances a 300-gram mass. What happens to the pointer? W. Clarke, in Mass Spectrometry for the Clinical Laboratory, 2017 1.3.1 Quadrupole Mass Analyzers. A quadrupole mass analyzer consists of a set of four conducting rods arranged in parallel, with a space in the middle; the opposing pairs of rods are electrically connected to each other. This type of mass analyzer separates ions based on the stability of their flight trajectories … related to: triple beam balance worksheet. www.formfindr.com. Free Online Balance Sheet - Step-By-Step Form Builder. Create A Balance Sheet With Our Smart Form Software. Save & Print In Minutes - 100% Free! Professional Business Accounting Forms - Save Time & Reduce Stress - Export To PDF & Word!

The maximum weight a triple beam balance can measure is 600 grams. The first beam can measure up to 10 grams. The second beam can measure up to 500 grams, read in 100 g increments. The third beam can measure up to 100 grams, read in 10 g increments. Each beam has notches (e.g., grooves) for the weights.

A free body diagram of the forces exerted on the block is shown in Figure 2 with an unknown ... A student is tasked with using a force table to balance a small ring in the center of a pin, as shown in ... Lab 10: True or False: You should never remove the cradle and link wires from the triple beam balance at any point during this lab. 2 ...

The scale of the back beam (the top beam in the diagram) is The scale of the middle beam is grams. The scale of the front beam (the bottom beam in the diagram) is _grams. _grams. The largest mass that can be measured with the triple beam balance is of all three beams). grams (the

mark and weigh them all together on the triple beam balance. Call this measurement m 1. 6.Draw a Free-Body Diagram for the meter stick in your lab book. 7.Calculate the net torque (sum of the torques) about the 25 cm mark. 8.Calculate the tension in the string supporting the the meter stick by using the fact that P F y = 0, where y is the ...

Triple-Beam Balance Digital Balance Stopwatch Meter Stick Mass Hanger (1) 10 g Mass (2) 20 g Masses (1) 50 g Mass Paper Clips (small masses) Plumb Bob Wastebasket 27. 28 Experiment 5: Newton’s Second Law FREE-BODY DIAGRAM SOLUTION METHOD: INSTRUCTIONS Step 1: Sketch the problem/situation and specify the coordinate system for each object in ...

19.Base your answer to the following question on Using a triple beam balance and a graduated cylinder, a student collected data on a sample of an element: Mass of sample – 10.9 g Volume of water – 30.0 ml Volume of water and sample – 34.0 ml a) Calculate the density of the sample.

Triple Beam, Series 1400 and 1500 - Harvard Trip Balance and Series 1200 - School Balance. The contents of this manual is contained in five chapters and are listed as

14. Measure the mass of the meter stick on the triple beam balance and compare to the mass determined in step 13. % Error: (10 pts) Summing Torques In each of the four diagrams below, indicate (circle) whether the system experiences a net torque counterclockwise (ccw), clockwise (cw), or net zero torque. [Note: Some forces act upwards.] (3 pts ea.)

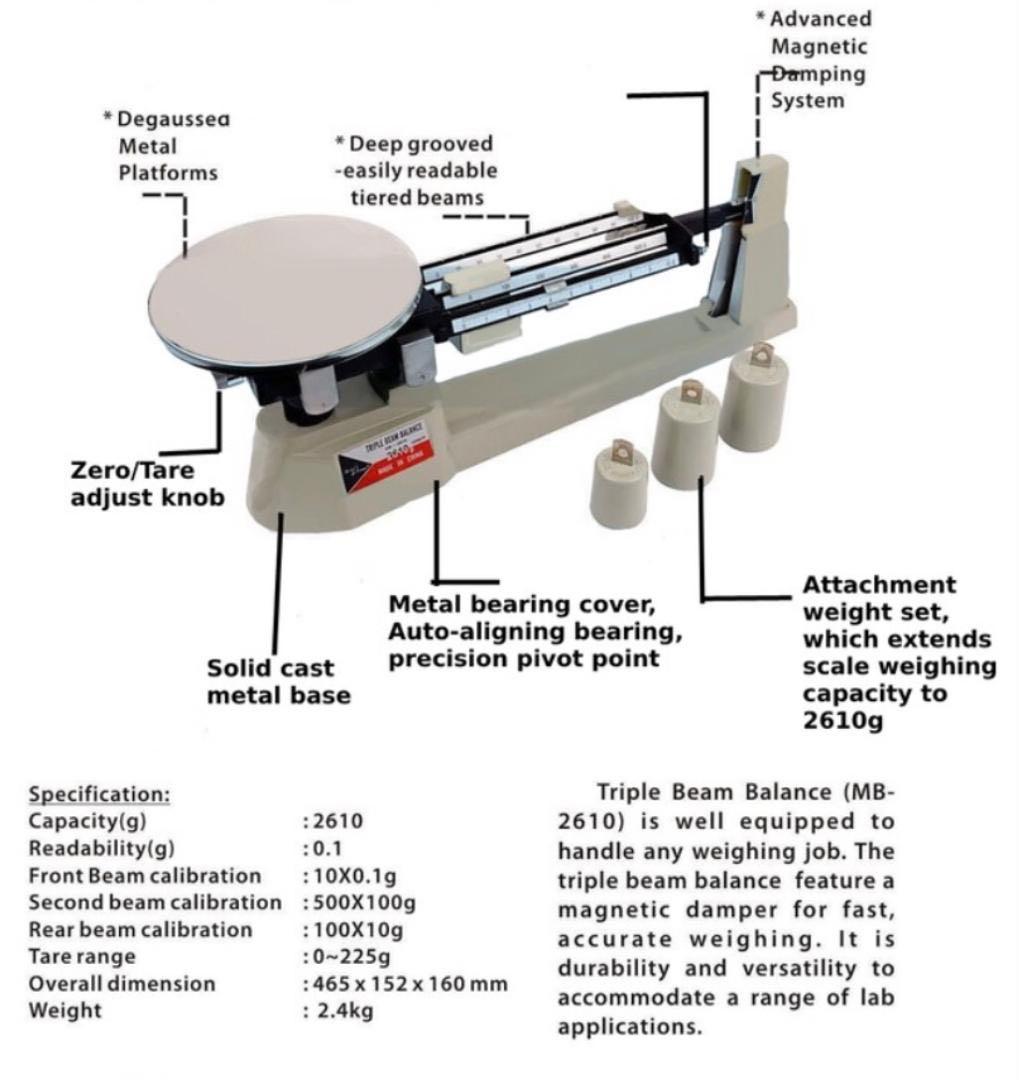

Accurate, dependable and truly the BEST IN CLASS; the OHAUS Triple Beam Pro offers the convenience of a top loading balance while allowing your students to gain the understanding of measurement garnered through hands-on activities. Applications Weighing Display . Easy to-read deep-notched, tiered beams and dial plates ...

An Introduction To Weighing Scales For Educational Use Adam Equipment Usa. Parts beam balance manufacturers and suppliers at everychina my weigh triple beam balance scale priority ship triple beam balance 225g tare capacity laboratory balances instrumentation triple beam balance scale mb 2610 jhexgb clipart suggest.

Learn about measuring mass. Then see how a triple beam balance is used.

Triple beam balance. Riders. Pointer. Pan. A balance comprised of three beams used to determine the mass…. The part that moves along the beam to mark how much the item w…. Pointy part of the scale that moves back and forth until it is…. Circles that hold the items to be measured. Triple beam balance.

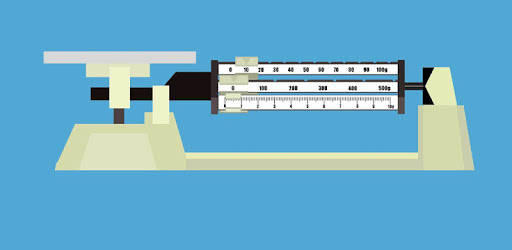

Many different models of the triple beam balance have been designed for various specific uses. However, they all retain the following common features. The above diagram represents a typical triple beam balance. Base and Pan. The solid metal platform which supports the rest of the parts of the triple beam balance is known as the base.

Draw a smaller rock on the diagram above so that it balances the big rock. Note: The rock and arrow can both be placed at the same spot, at the end of the lever. Gizmo Warm-up A triple beam balance is a type of lever that is used to measure mass, or the amount of matter in an object. An object with an unknown mass is placed on the measurement tray.

A triple beam balance is a device used in measuring mass with high precision. Get to know the definition and structure of a triple beam balance and learn how to use and read a triple beam balance ...

Answer (1 of 4): Get a flash light and look under the pan on the side where the triple beam is. See that little bar that the beam assembly sits on? It has a wedge shaped top and usually sits in a notch on the assembly that keeps every thing lined up. That's the fulcrum and it's what the two sides...

Triple Beam Balance Scale Poster - Diagram with Labels. A poster containing a diagram with labels showing the key parts of a triple beam balance scale. 1 page Years: 3 - 6 teaching resource Lab Equipment Poster - Diagram with Labels.

A triple beam balance measures the mass of an object with a mass less than 610 grams. Observe a triple beam balance and the three different beams. Based on the diagram provided in this lesson, the...

A brief "how to" for using the infamous tbb.

Answered May 01, 2019 The correct answer is 545.20 g. From this triple beam balance we can determine what the scale represents. The first beam balance shows a scale of 500. The second beam balance shows a figure of 40g The third beam balance shows a figure of 5.2g The total figure = 500 + 40 + 5.2 = 545.20g Hope this helps. John Smith

triple-beam balance. The riders at the zero mark except for the rider on 0Œ10 gram beam which is located at the position shown. What is the mass of the copper metal? _A 0.455g _B 4.56g _C 0.55g _D 5.50g 2. The diagram shown represents a portion of a triple-beam balance. If the beams are in balance, with the riders in the position shown, what ...

From triple beam balance practice worksheets to triple balance beam videos, quickly find teacher-reviewed educational resources. ... They complete a diagram of a triple beam balance. Students explore using the triple beam balance to determine the mass of an object. They discuss procedures for using the triple beam balance.

necessary to use the triple beam balance to find this. Mark each hanger/hook with L or R to indicate whether it is on the left or the right. Part Two 4. Place the knife-edge about 20-30 cm from the end of the meter stick and place a single weight hanger and weight hook on the short end of the stick. Place slot masses on this

2) Naming the parts - A triple beam balance scale is made up of a several parts. The stage, often called the pan, is the round stainless steel disk that would hold the object you wish to weigh. The base is the metal structure that supports the triple beam balance scale. The beams are the three measurement scales used for determining weight.

A triple beam balance is a type of lever that is used to measure mass, or the amount of matter in an object. An object with an unknown mass is placed on the measurement tray. On the other side of a fulcrum, a set of sliding weights, called riders, slide on beams to balance the object. Practice using the balance in the Triple Beam Balance Gizmo. 1.
