Diy Septic System Diagram 2021. Diy Septic System Diagram. 2 — diy tote tank septic system. A septic drain field is a vital part of any septic system. A typical septic tank and drainfield will consist of a 12×8 foot septic tank and a drainfield. After the tank has been leveled, fill the area around it. This video explains what a mound septic system is, how it works and how to properly maintain it.Produced by the Anne Arundel County Department of Health. Vis...

Other types of drainfields include at-grade and sand mound systems (Figure 4) which are elevated systems used in areas with marginal soil types and high water tables. In a sand mound system, the wastewater flows from the septic tank to a storage tank. The liquid is then pumped from the tank to perforated plastic pipes buried in

Sand mound septic system diagram

Perforation Spacing and Lateral Length Diagrams . . . . . . . 33 ... A sand mound system is an on-site sewage disposal system that is elevated above. A sand mound system is an on-site sewage disposal system that is elevated above the natural soil surface in a suitable sand fill material ( Figures 1.1 and 1.2 ). Gravel-filled absorption beds are constructed in the sand fill, and effluent from a Elevated Sand Mound Design Manual 4 December 18, 2013 (b) Basal Area (1) The dimensions of the basal area and sand mound shall be as long and narrow as site conditions permit [For residential systems, see Rule 410 IAC 6-8.3-79(a)(2) and 80(a); for commercial systems, see Rule 410 IAC 6-10.1-87(a)(2) and 88(a)].

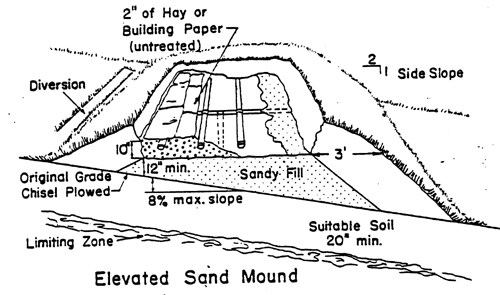

Sand mound septic system diagram. The sand mound septic system is a drain field that is raised above the natural soil surface in a specific sand fill material. Within the sand, fill is a gravel-filled bed with a network of small diameter pipes. Septic tank effluent is pumped through the pipes in controlled doses to ensure uniform distribution throughout the bed. Sand mound septic system diagram. Effluent from the septic tank flows to a pump chamber where it is pumped to the mound in measured doses. Produced by the anne arundel county department of health. Sand mound absorption areas are about the same size as conventional in ground absorption systems averaging 600 to 1500 square feet for a three ... The sand mound absorption system can be built as either a seepage bed or a network of trenches, but seepage beds require much less total land area. After the aggregate and distribution pipes have been placed, cover the aggregate with a separation layer of untreated building paper, 2 inches of straw, or a geotextile to prevent backfill soil from ... Mound System. In the mound system, a large sand mound is constructed and used as a drain field. The wastewater flows in a regulated fashion from the septic tank to a chamber where it is pumped through to the mound. The wastewater flows from the pump chamber through to the mound trench, percolates through the sand, and finally trickles into the ...

Enclosure Box I Used: https://amzn.to/2PNw21mAudible Alarm with Float: https://amzn.to/2PKmnslSewage Septic Pump: https://amzn.to/2wlEuNeAlarm with Light and... The program also will estimate the volume of sand, gravel, and soil required for construction and size the pumping and piping needs of the pressure distribution ... Provide the homeowner with a layout diagram of the septic system.Sand Mound Septic Systems. An alternative to the typical absorption system is the sand mound. Sand mound systems are used in areas where the site is not suitable for a traditional (in-ground) septic system. The soil may percolate too slowly, or the water table may be too high. septic system performed every one to three years (depending on the type of system) and to report the condition of their system to the local health jurisdiction. The do-it-yourself (DIY) septic system inspection training program is designed to teach homeowners how to perform a basic inspection of their home septic system.

Wisconsin sand mound diagram ... The sand mound system includes a septic tank, a dosing chamber, and a mound made of sand fill above the soil surface. Mound Systems. In areas with shallow soil depths, high groundwater, or thin bedrocks, a mound system is an option. In this system, a constructed sand mound encloses a drainfield trench. Effluent from the septic tank flows to a pump chamber where it is pumped to the mound in measured doses. In these systems, specially selected sand is placed on top of natural soil to help treat septic tank effluent. Effluent discharging from a septic tank accumulates in a dosing tank where a pump discharges a predetermined volume of wastewater into the mound. Mound systems are long and narrow, and must be constructed along the lot contour. Homeowners should be encouraged to monitor the performance of the septic system by routinely check- ing for the presence and depth of water in the monitoring wells during spring, summer, and fall. Any progressive increase in ponding depth within the mound bed or sand fill over time may be indicative of a future problem.

A mound septic system (or septic mound system) is a soil absorption system that is elevated above the natural soil surface in a suitable fill material. It is a variation of the raised bed utilizing sandy fill material but not requiring a stabilization period prior to the construction of the absorption area.

Mound Septic Systems Meade Septic Design Inc

22,591 Posts. #13 · Oct 4, 2013. A sand mound system is used where there is not enough soil depth for a leach field. Usually rocky areas with only a few feet of soil over the rocks. The hill of sandy soil is built in the yard and the effluent from the septic tank is pumped up into the leach field installed in this hill. 1 - 13 of 13 Posts.

Diagram Gallery Flower Mound Tx Official Website

A mound system is a type of absorption field, so are trenches, beds, trench chambers, and drip irrigation. 3. The Dosing tank has a pump in it that is used to pump the liquid effluent to the absorption field. Effluent from the septic tank enters the dosing tank and at a specific height and turns on the pump by lifting the pump "on"float switch.

Clean Sewage

Mound Systems. Mound systems are an option in areas of shallow soil depth, high groundwater, or shallow bedrock. The constructed sand mound contains a drainfield trench. Effluent from the septic tank flows to a pump chamber where it is pumped to the mound in prescribed doses.

Mpca Staffer Bites Bullet Pulls Trigger On New Septic System Minnesota Pollution Control Agency

Fig. 1. Schematic of the Wisconsin mound system showing septic tank, dosing and mound. dosing chamber contains a pump or siphon, which transfers effluent, under pressure, to a distribution network of small diameter pipes with small perforations which distributes the effluent uniformly over the absorption area of the mound.

Mound Septic System Function Failure Restoration Youtube

Sand Lined Trench Systems - Recommended Standards and Guidance Effective Date: March 2014 DOH 337-013 Page 12 of 31 1. Performance Standards 1.1. Performance Criteria When properly sited, designed, installed, operated and maintained, a sand lined trench system consistent with these recommended standards and guidance is expected to achieve

Id 163 Steps In Constructing A Mound Bed Type Septic System

Glendon Biofilter Mound Systems Glendon Biofilter septic systems consist of a septic tank, pump tank and above ground mounds over the basins used to filter the effluent from the tanks. These mounds could be called "conspicuous" and perhaps "challenging" to landscape. Many homeowners block off the view of the mound area with hedge

Septic Effluent Filters Stangland Septic Service Aberdeen Wa

system. The Indiana State Department of Health (department) Rules 410 IAC 6-8.3 and 6-10.1 outline the site suitability and design requirements for elevated sand mound systems for the state of Indiana. All elevated sand mound systems must meet the site suitability, design and construction requirements of the rule.

Understanding And Maintaining Mound Systems Humboldt County Ca Official Website

systems utilizing septic tanks only; and encompasses conventional gravity flow and effluent pump systems for new/existing residential and commercial establishments that are outside the Chesapeake Bay and Atlantic Coastal Bay Critical Area (within 1000' of Tidal Water). Sand mound, low-pressure

Mound Septic Systems Youtube

A conventional pressure septic system, such as that used in a sand mound or shallow trench septic system, consists of the following key components: Septic tank or other pretreatment chambers where solids are separated, stored and removed.

Types Of Septic Systems Us Epa

The mound is a drainfield that is raised above the natural soil surface in a specific sand fill material. Within the sand fill is a gravel-filled bed with a network of small diameter pipes. Septic tank effluent is pumped through the pipes in controlled doses to insure uniform distribution throughout the bed.

Sand Mound Micsky Septic Systems

However, alternative systems such as the mound system can overcome soil and site conditions which might prevent the use of basic septic systems. How Does a Mound System Work? A mound system consists of a septic tank, dosing chamber, and elevated absorption mound. The dosing chamber is an additional tank that receives effluent from the septic tank.

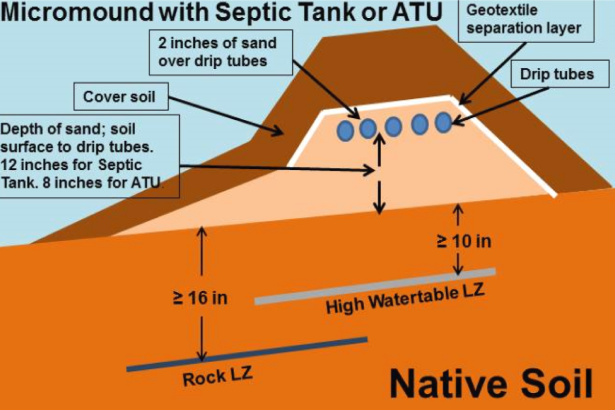

Micromound With Drip Irrigation Micsky Septic Systems
