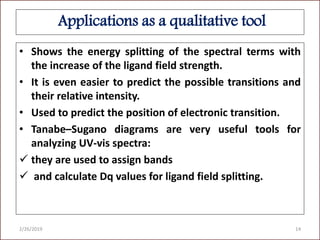

PDF Coordination Chemistry III: Tanabe-Sugano Diagrams d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e--e-repulsion The example on page 427 of your text shows how to use this chart to fit the experimental data (E1, E2, and E3) for [V(OH2)6]3+to ... Tanabe sugano diagram - SlideShare Tanabe-Sugano diagram for d2 octahedral complexes 2/26/2019 12 13. Advantages over Orgel diagrams • Tanabe-Sugano diagrams can be used for both high spin and low spin complexes, unlike Orgel diagrams which apply only to high spin complexes. • In a Tanabe-Sugano diagram, the ground state is used as a constant reference, in contrast to ...

Tanabe-Sugano diagrams via spreadsheets Print the appropriate Tanabe-Sugano diagram and locate where the ratio of the second to first peak matches that found experimentally. Tabulate the values of v1 / B, v2 / B, v3 / B from the Y-intercepts and Δ/B from the X-intercept. A laboratory experiment based on this is described in more detail in the CHEM2110 lab manual.

Tanabe sugano diagram calculator

Tanabe Sugano Diagram - d7 system - YouTube A step-by-step tutorial on assigning the transitions in the UV-vis spectrum of a d7 system using a Tanabe-Sugano Diagram. PDF Coordination Chemistry III: Tanabe-Sugano Diagrams and ... d7Tanabe-Sugano Diagram E / B ∆o/ B 4F 2G 2Eg 2T1g 2A1g 2T2g 4P 4A 2g 4T 1g ( 4P) 4T 2g 4T 1g ( 4F) Complexes with d4-d7 electron counts are special •at small values of ∆o/B the diagram looks similar to the d2diagram •at larger values of ∆o/B, there is a break in the diagram leading to a PDF Calculation of Dq, B and β Parameters - Dalal Institute The Orgel and Tanabe-Sugano diagram for d2-configuration can be used to estimate the value of crystal field splitting energy for these transition metal complexes. (a) (b) Figure 38. The (a) Orgel and (b) Tanabe-Sugano diagrams for d2 complexes in the octahedral crystal field. Consider the example of [V(H2O)6]3+. 1.

Tanabe sugano diagram calculator. Calculations using Tanabe-Sugano diagrams The baseline in the Tanabe-Sugano diagram represents the lowest energy or ground term state. The d 2 case (not many examples documented). The electronic spectrum of the V 3+ ion, where V(III) is doped into alumina (Al 2 O 3), shows three major peaks with frequencies of: ν1=17400 cm-1, ν2=25400 cm-1 and ν3=34500 cm-1. Tanabe Sugano Diagram JAVA Applets | VIPEr A series of JAVA applets of Tanbe-Sugano diagrams were developed by Prof. Robert Lancashire at the University of the West Indies. These diagrams allow students to determine delta o /B values based on ratios of peak energies without the pain of rulers and drawing lines. There are also features that allow a person to input values and automatically calculate certain parameters. PDF Dr. Sanyucta Kumari Assistant Professor (Chemistry) MLT ... Tanabe-Sugano diagrams are used in coordination chemistry to predict absorptions in the UV, visible and IR electromagnetic spectrum of coordination compounds. The results from a Tanabe-Sugano diagram analysis of a metal complex can also be compared to experimental spectroscopic data. They are qualitatively useful and can be used to ... Physics:Tanabe-Sugano diagram - HandWiki Certain Tanabe-Sugano diagrams (d 4, d 5, d 6, and d 7) also have a vertical line drawn at a specific Dq/B value, which is accompanied by a discontinuity in the slopes of the excited states' energy levels.This pucker in the lines occurs when the identity of the ground state changes, shown in the diagram below. The left depicts the relative energies of the d 7 ion states as functions of ...

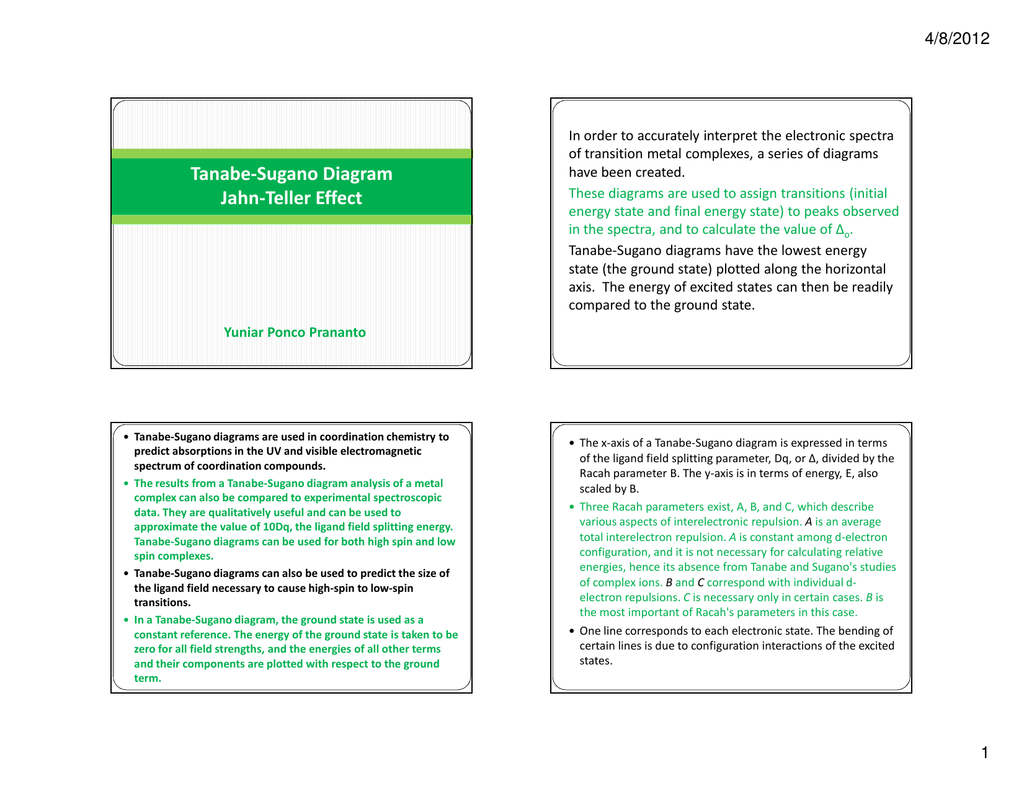

1.4: Tanabe-Sugano Diagrams - Chemistry LibreTexts 1.4: Tanabe-Sugano Diagrams. Tanabe-Sugano diagrams are used in coordination chemistry to predict electromagnetic absorptions of metal coordination compounds of tetrahedral and octahedral complexes. The analysis derived from the diagrams can also be compared to experimental spectroscopic data. Armed with spectroscopic data, an approximation to ... Tanabe Sugano Diagram D6 - schematron.org A Tanabe-Sugano diagram of some spin-allowed and forbidden transitions for low spin octahedral d 6 complexes is given below. Title: Microsoft PowerPoint - handout6b Author: Alan Jircitano Created Date: 11/22/ PM. Lecture 4 May Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or ... PDF Tanabe-Sugano Diagram Jahn-Teller Effect - UB Tanabe-Sugano diagrams can be used for both high spin and low spin complexes. Tanabe-Sugano diagrams can also be used to predict the size of the ligand field necessary to cause high-spin to low-spin transitions. In a Tanabe-Sugano diagram, the ground state is used as a constant reference. The energy of the ground state is taken to be D7 Tanabe Sugano Diagram - schematron.org A Tanabe-Sugano diagram of the spin-allowed and some forbidden transitions for high spin octahedral d 7 complexes is given below. d2Tanabe-Sugano Diagram E / B ∆o/ B 3F 3P 3T 1g (3P) 3A 1g 3T 2g (3F) 3T 1g ~15B ~∆o ~∆o E1 E2 E3 E is the energy of the excited state relative to the ground state B is the Racah parameter for e--e ...

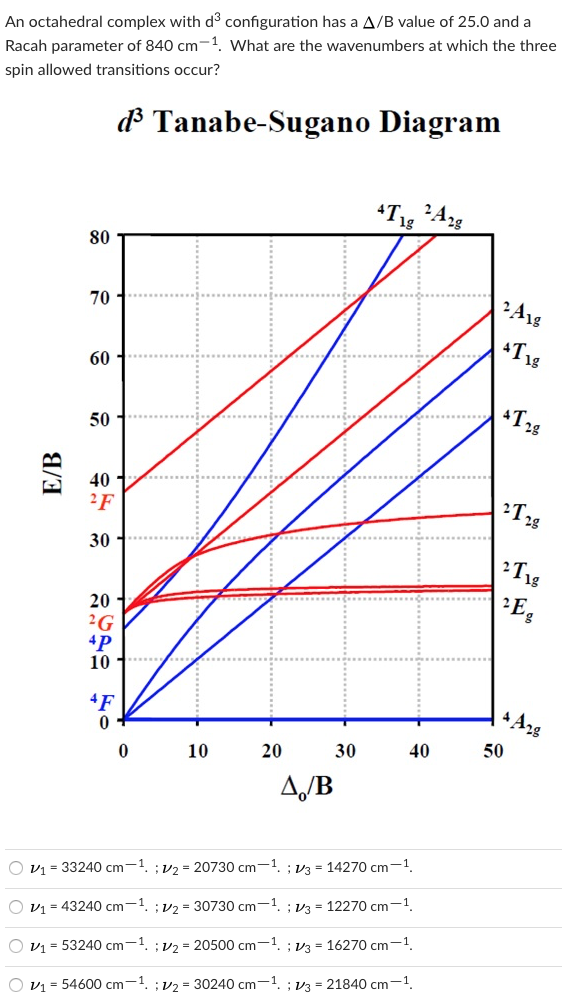

tsunami tackle/bimini bay outfitters Plan your perfect trip with my advice. Sign up for your personal e-mail consultation and 1:1 live call to finish your planning! Sign me up! Tanabe Sugano | PDF | Coordination Complex | Quantum Mechanics 2 • Tanabe-Sugano diagrams have been calculated for d the cases of all ligand field strengths for all octahedral dn-metal complex configurations. • The diagrams allow for estimation of a complete set of parameters included in the calculations: i) the (apparent) electron repulsion parameter B', ii) D, iii) transition frequencies. 52 PDF 5.03 Exam 5 - MIT 3 Tanabe-Sugano Diagrams The questions for this section are worth 4 points each. 1.For a nickel(II) complex three bands are observed at energies of 8000, 13200, and 22800 cm 1. what is the value of o?Shown below is the Tanabe-Sugano diagram for the d8 case. 2.Using the values from the preceding question, what is the approximate value of o/Bthat is ... D8 Tanabe Sugano Diagram Lecture 4 May Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E.

Use a Tanabe-Sugano diagram to predict the wavelengths ...

PDF 13 Tanabe Sugano Diagrams - MIT Lecture 4 May 11: Tanabe Sugano Diagrams A Tanabe-Sugano (TS) diagram plots the energy dependence of the various ligand field states (or terms) with field strength. The strength of the ligand field is defined by Dq, which is related to the octahedral crystal field splitting by 10Dq = ∆o. The energy of the state is given by E.
