Reverse Osmosis System Components. RO Module The RO module is the main component and holds the pre-filters, membrane, and post-filter. A bracket is provided so they can be mounted under the sink or in a basement. Angle Stop Valve The angle stop valve connects to the cold water line to supply water to the RO system and provides an easy ability to shut off the water supply when servicing the unit.

https://www.uswatersystems.com/

Drain line: This line runs from the outlet end of the Reverse Osmosis membrane housing to the drain. The drain line tubing is used to dispose of the wastewater containing the impurities and contaminants that have been filtered out by the reverse osmosis membrane. Diagram of a Reverse Osmosis System with Basic Components:

Ro membrane housing diagram

Note: The RO Membrane Element has already been pre installed. PART I. ASSEMBLE THE FILTERS AND HOUSINGS ONTO THE MAIN SYSTEM Remove plastic/paper wrappings on the 3 filters, put them into the 3 housings, and assemble the

FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) membrane technologies are widely recognized to offer highly effective and economical process options. From small-scale systems, through to very large-scale desalination, RO and NF can handle most naturally occur ring sources of brackish and seawaters.

Codeline 80S series Codeline OCTA 80S is membrane housing series of 8" diameter with side entry design equipped with OCTA Technology. This is used for commercial, municipal and industrial RO applications. Vessel models are available in operating pressure of 150 PSI, 300 PSI, 450 PSI, 600 PSI,1000 PSI and 1200 PSI with multiport connectivity.

Ro membrane housing diagram.

The membrane assembly unit (RO block) consists of a stand supporting the pressure vessels, interconnecting piping, and feed, permeate and concentrate ... Flow diagram of a two stage RO system with interstage pump PG PG PG 186 psi 12.8 bar 160 psi 11.0 bar 182 psi 12.6 bar 200 gpm 45.4m3/hr 101 gpm 22.9 m3/hr 150 gpm 34.0 m3/hr 49 gpm

Install a piece of pipe to connect the outlet from your pre-filter unit (outlet of part 4 on the diagram) to the inlet of your RO membrane housing (the end of the housing with a single fitting) (inlet of part 6 on the diagram). Install a piece of pipe onto the central fitting on your outlet end cap. This is your pure water outlet.

Stainless Steel membrane housing pressure vessels available for 2", 2.5" & 4" Diameter membrane elements for pressures up to 300 PSI. Click-Lock Clamps, Straps, Support Saddles and other hardware to ensure secure pressure vessel installation and support in a water treatment system.

(part 4 on the diagram). Unscrew the lid of the RO membrane housing with the inclued white spanner. Remove the blue RO membrane from its wrapper (do not remove any of the blue material from the RO membrane). Place a small amount of vaseline on all 3 seals that are installed onto the RO membrane (2 small seals at one end and a larger one at the ...

Source: Wikipedia. Reverse osmosis (RO) is a membrane-technology filtration method that removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute is retained on the pressurized side of the membrane and the pure solvent is ...

Pump and membrane housing) at their bases using the screw and nut provided. The Permeate Pump mounts onto the R.O. membrane housing using the clip assembly. 4. The label clearly show the location of each port. Mount the Permeate Pump with Outlets (both brine and permeate) Positioned Up. This step is VERY IMPORTANT to rid any entrapped air. 5.

The Codeline Ecoline 25-300 membrane housing of 2.5" diameter, made from filament wound epoxy/glass composite, is applicable for operating pressures up to 300 PSI /20 Bar and has a qualification pressure of 1200 PSI/82 Bar. View product. Ecoline 40L30N.

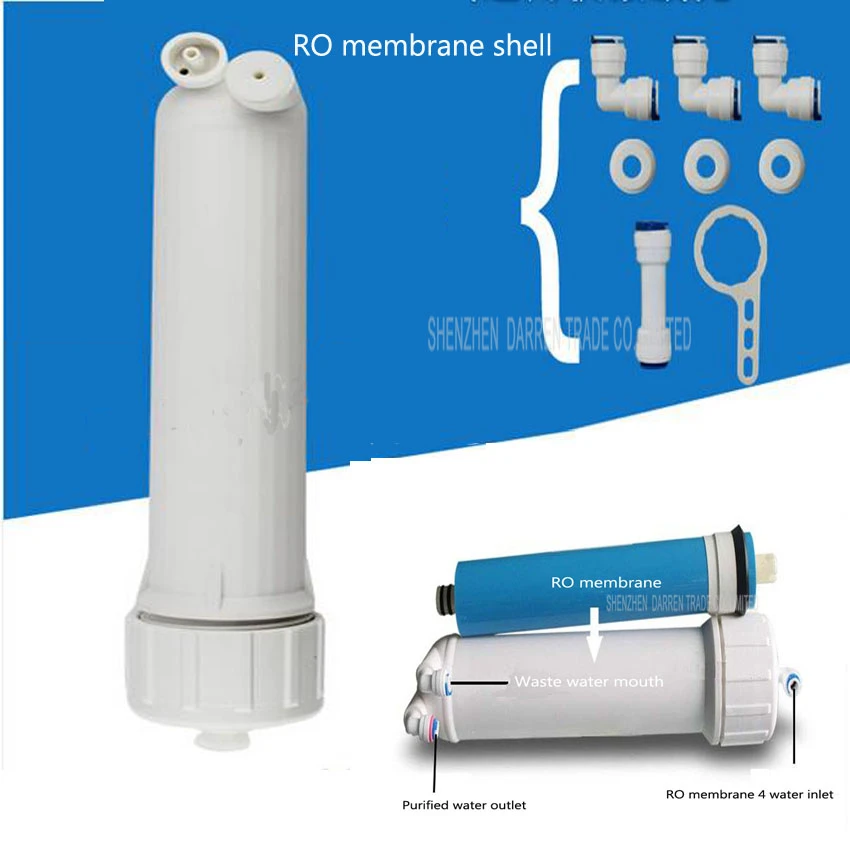

RO Membrane housing Hook up. Almost always the outlet (Permeate) or purified water port is the one that located more towards the middle on a double port (fitting) side of the membrane housing. If you take RO membrane housing apart and look inside, you will see two holes that connected to the fittings on the outside.

housing and cap, PCF filter housing and cap, membrane housing and cap, found to be defective in material or workmanship, Hague will repair or replace the defective item, at no charge for that item, for 25 YEARS from date of installation. Hague Quality Water International further warrants that upon receipt from the owner of the RO storage tank ...

Drain line: This line runs from the outlet end of the RO membrane housing to the drain. This line is used to dispose of the concentrate rejected by the membrane element. Figure 2 shows a schematic of an RO system with numbers corresponding to the components above. Figure 2. Diagram of an RO System with Basic Components

Standard reverse osmosis membrane housing. 1/8" NPT threaded ports. $12.00 Part # mm999 Filter Housing Screw Packet Contains four #10 Screws, 3/4" long, to mount filter housing to bracket. Use this set if you are attaching a housing without a membrane clip. $1.00 Part # mb905 ...

Molykote 111 compound is the recommended o-ring lubricant for use in water filters and water treatment systems including reverse osmosis membranes & pressure vessels, and filter housings. The high gade silicone lubricant does not harm the membrane or downstream equipment typically used in reverse osmosis and water treatment systems.

Make Sure the RO membrane is inserted correctly. Two Common Mistakes: 1) Forget to put the Membrane into its housing. 2) Insert Membrane into housing in the "wrong" direction.. When you install the RO system, if you forget to put the membrane into its housing, or put it in the "wrong" (reversed) directon --> your water will not be filtered, and the RO will vibrate or make humming noise when ...

The permeate is the final and desired "product" of reverse osmosis filtration. The permeate water is sometimes referred to as pure water, or simply "product" water, and usually has 95%-99% of the dissolved salts removed from it. Concentrate. The concentrate is the undesirable water that exits the membrane element.

Our RO membrane housings are used for reverse osmosis membranes and they are the hub of any reverse osmosis water system. We carry a variety of membrane housings, manufactured in all of the standard sizes, with dimensions like the 2.5 inch and 4 inch diameter housings, and lengths from 14, 21, 40, 80 and 120 inches.

typical t.f.c.-335 under sink installation diagram drain (1/4" black) drain (3/8" black) product (3/8" blue) inlet (1/4" red) activated carbon post filter housing reverse osmosis membrane housing sediment/ carbon prefilter housing feed water saddle valve (cold water line only) dispensing faucet with air gap ro manifold drain clamp holding ...

I. Prefilter Housing - Contains the RO prefilter. J. RO Feed Pump - Pressurizes the RO feed water. K. RO Membrane Housing(s) - Contains the RO membrane(s). L. Water Quality Meter - Indicates the quality of the feed and product water in parts per million of total dissolved solids (PPM - TDS). M. Feed Water Inlet.

Winder ® 2.5" FRP RO membrane housings are widely used in reverse osmosis water treatment system. 300 PSI to 1000 PSI, end port for 2514, 2521, 2540 membranes.. Winder FRP RO housing since 2006, ASME certification in 2014: 100% quality assurance test with 1.1 times of working pressure maintained for at least five minutes, we could guarantee the safety and no leakage.

RO membranes are typically capable of removing 90%-99% of contaminants such as total dissolved solids (TDSs) in the water supply. The membranes are usually manufactured as a flat sheet of thin composite membranes consisting of an active polyamide layer (high permeability but impermeable to dissolved salts and particulate matter) supported by a porous polysulphone layer wound round a central ...

correctly after replacing the membrane. 4. Remove the RO membrane housing from its clips. 5. Unscrew the RO membrane housing cap. This may require an assistant holding the membrane housing while you unscrew the lid. 6. Grasp the stem of the RO membrane with pliers, and twist and pull the membrane from the housing. 7.

We carry a variety of RO pressure vessels in all the standard sizes; with 2.5" and 4" diameters and lengths from 14, 21, 40, 80, or 120 inches. These standard manufacturing dimensions ensure membrane housing components are easy to replace and are interchangeable to fit most systems.
