Step 14: Weld Rear Mounts to Axle Assembly. Install the rear end mounts and place them up to the rear housing. The optimal position for the rear end is 2 to 3 degrees down angle to the front of the car. This provides the right geometry for the driveshaft rotation. A magnetic angle protractor is really helpful for this project. corporate 14 bolt full floating GM suburban 2500 3/4 ton 1 ton 3500 pick up,GM14T-373-OE, GM14T, GM14T-, GM14T-4, GM14T-373, GM14T-373-, 40058731. Description: Original Factory gear for GM 10.5" 14T in a 3.73 ratio. OEM gears are recommended for quiet applications where noise may be an issue.

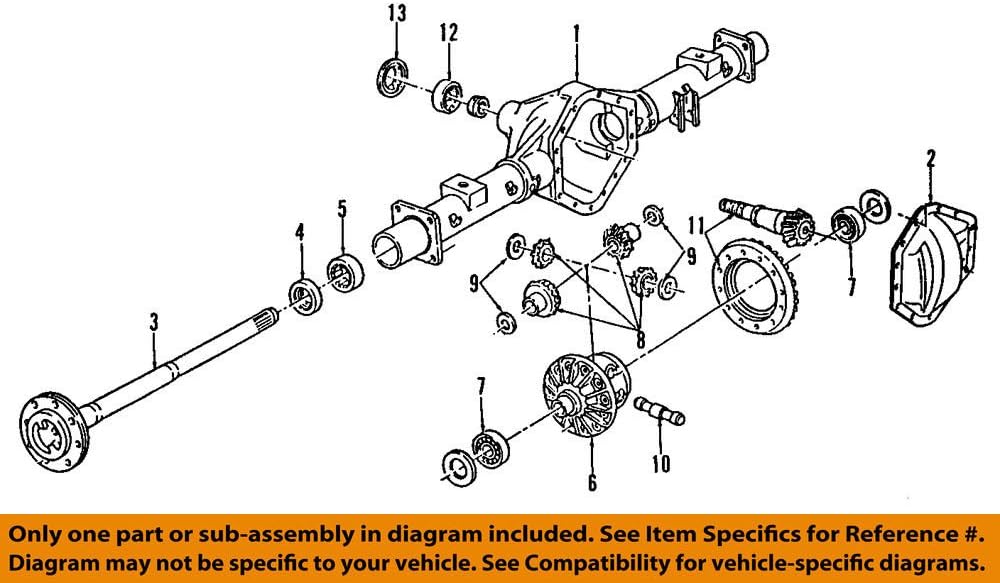

bolt outer pinion bearing inner pinion bearing shims shims or crush sleeve housing axle bearing axle seal axle shaft wheel stud cap race race ring gear carrier bearing carrier bearing shims shims ring gear bolts differential filler plug side gear ring gear thrust washer thrust washer cross pin shaft carrier bearing & race carrier bearing & race ...

Gm 14 bolt rear end diagram

A 14 bolt's great features come at a cost - they're strong, but also heavy. They are very heavy. 14 bolts Typically have a 1/2" thick axle tube and the typical 14 bolt is probably about twice the weight of a Dana 35. Most wheelers in lighter vehicles don't need the strength (and resulting weight penalty) of a 1/2" axle tube. A Chevy 1/2 ton pick-up may have a Chevy 10 bolt rear axle or a 12 bolt rear axle. Both of these are semi-floating axles. A Chevy 3/4 ton pick-up may have a 14 bolt semi-float rear axle or a 14 bolt full-floating axle. All of these axles take different parts so we need to properly identify the axle you have to get you the right part. here is a close-up of a 14 bolt gm rear end. it is in a 1977 chevy k/20. it is a full floating axle, with the massive 10 1/2" ring gear. the axle shafts are held in with bolts. the smaller 14 bolt, with it's 9 1/2" ring gear, is a semi-floating design. it uses c-clips to hold the axles hafts in. just like the 10 bolt, and 12 bolt gm rears.

Gm 14 bolt rear end diagram. Dec 30, 2018 · This amazing gm 14 bolt parts diagram that brings alongside 14 pictures also with gm 14 bolt pinion yoke along with 14 bolt gm bearings as well as gm 14 bolt semi float axle along with 14 bolt cover also with 14 bolt rear end along with chevy 14 bolt rear end identification including gm 14 bolt front axle furthermore 14 bolt full float axle as. Gm 14 bolt rear end diagram. Just like the 10 bolt and 12 bolt gm rears. Chevy 14 Bolt Full Float Axle Disassembly Posted on February 13, 2021 February 13, 2021 by Kurt Eades by Kurt Eades. 2009 Chevy 2500HD axle with 4.56 gears and G80 locker. I specifically did not use air tools, to show the process. A lot of people only have basic tools and this can be accomplished with standard tools. See List below. 1973 TO 2001 Chevy and GMC K20, K25, K30, K35 . Denny's Driveshafts stocks the Chevy and GM Corporate 10.5 inch 14 Bolt rear end pinion yokes in the 1350 series and 1410 Series. The 10.5 inch 14 Bolt rear ends can be found in many full size Chevy and GMC K20, K25 3/4 ton and K30, K35 1 ton trucks from 1973 to 2001. GM 14 Bolt Axle Overview. The GM 10.5" axle, commonly known as the GM "14 Bolt", is an extremely popular rear axle due to its strength, availability, and healthy aftermarket. They feature a massive 10.5" diameter ring gear and pinion with a 3rd bearing at its nose that prevents gear deflection under severe loads.

The 14 bolt differential is a popular axle swap option for Jeep Wrangler owners, and is referred to as the "corporate" 14 bolt because of the odd nature of GM's corporate structure in the 1970s. [3] Not to be confused with the GM 14-bolt 9 and 1/2 inch ring gear rear differential which has c clips to retain the axles unlike a free floating axle ... They may fall apart on the way out. Don't worry, just refer to the diagram. Pull the left side next. Inspect your side gears (7 and 13) and spider gears (6) for damage. Chipped gear teeth is a very bad thing, and means your rear diff is probably on borrowed time. A gear kit with all 4 is available from GM, but is expensive. This article details a complete carrier change plus installation and setup of the ring and pinion gears in the GM 10.5" ring-gear 14-Bolt full-float rear axle. It assumes you are familiar with basic axle and differential terminology - i.e. that you can tell the difference between the carrier and the pinion nine times out of ten! via YouTube Capture

AXLE IDENTIFICATION Chevrolet began the manufacture of their own design Front Drive Axles for use on 1/ 2 and 3/ ... (w/Through holes for U-Bolt type U-joint attachment) 1973-77 1st Des ... 14 6.103 3979552 1 ARM, Strg. - LH 15 6.174 3965137 3 STUD, Strg. Arm 16 6.020 6.020 6.020 360043 14016437 14013071 1 1 1 May 05, 2017 · The gm 14 bolt can easily. Gm 14 bolt rear end diagram. Just like the 10 bolt and 12 bolt gm rears. Aam 218mm gm 218mm rear drive module camaro. Chevy gm 14 bolt rear end cover gasket and bolts fits 14 bolt differential. It is in a 1977 chevy k20. gm 8.6" rear axle / 10 bolt gm 8.6" rear axle / 10 bolt multi link. aam 218mm gm 218mm rear drive module - camaro. aam 195mm gm 195mm rear drive module - camaro. aam 250mm gm 250mm rear drive module - camaro. aam 925 series gm 9.25" front axle / ifs / 4wd and awd gm 9.25" front axle / ifs salisbury. aam 950 series gm 9.5" rear axle / 14 bolt gm ... Our standard tube size for 14 bolts is 3.5" x .500" wall DOM. Our axle press. We always use the Steering 14 Bolt Builder Kit which inlcudes the GM D60 Premium Knuckle Upgrade Kit. These kits from Crane Axle provide all the parts to build a 14 Bolt front axle. These kits utilize Spicer parts, known as the leader in the industry for quality.

Rear Axle Identification

Compared to the 14 bolt full-float axle, the 14 bolt semi-float has a smaller ring gear (9.5″), and the axle shaft can not be removed without also removing the wheels. Still, the 14 bolt semi-float is a solid axle for a lot of applications. Compared to a GM 10 bolt axle (for example), a semi-float 14 bolt is a nice upgrade.
